From entry level, low volume shrinking to High-End solutions for High Performance Manufacturing: the versatile product range of ThermoGrip® machines provides the optimal solution for every application.
ISG - for each application the right shrink machine. Our devices grow with your needs.
The new ISG1200 unit is the basic simplicity: Scan a barcode and press the key. Place a cooling adapter on the tool holder and move to the integrated air cooling station, then allow the tool to cool in minutes. The ISG1200 is a universal shrinking unit for the efficient use of shrinking technology. With the 480V three phase power source, all carbide and HSS shanks can be clamped quickly.
| Technical Data: ISG1200 | ||||||
| Ident No | Dimensions | Clamping Range Carbide | Clamping Range HSS | Air Pressure | Power | Weight |
| 5198652 | Depth: 400mm (16") Width: 315mm (13") Height: 850mm (34") |
3-32 mm 1/8" - 1-1/4" |
10-32 mm 3/8" - 1-1/4" |
N/A | 3x480V-15A | 45 kg 100 lbs |
This controlled ISG2430TLK unit is simple to use. All that needs to be done is to select the tool diameter range. After the induction coil is positioned around the tool holder, push the start button and the coil heats the tool holder sufficiently. When the heat cycle is completed, move the coil upward away from the tool. Place a cooling adapter on the tool holder and press the cooling button, then allow the tool to cool in minutes. The ISG2430TLK is a universal shrinking unit for the professional use of shrinking technology. With the 208V power source, all carbide shanks 3-20mm can be clamped quickly.
| Technical Data: ISG2430TLK-3.2-FS | ||||||
| Ident No | Dimensions | Clamping Range Carbide | Clamping Range HSS | Air Pressure | Power | Weight |
| 5140673 | Depth: 550mm (22") Width: 790mm (31") Height: 850mm (34") |
3-20 mm 1/8" - 3/4" |
N/A | N/A | 3x208V-15A | 45 kg 100 lbs |
This controlled ISG3430TLK unit is simple to use. All that needs to be done is to select the tool diameter range. After the induction coil is positioned around the tool holder, push the start button and the coil heats the tool holder sufficiently. When heat cycle is completed, move the coil upward away from tool. Press the cooling button and allow the tool to cool in minutes. The ISG3430TLK is a universal shrinking unit for the professional use of shrinking technology. With its unique coil changing system, the power transfer adjusted to different clamping chucks is guaranteed within a short period of time. Compared to other systems, this makes it possible to clamp the smallest diameter tools. This means that the constant preparation of a high number of tools can be guaranteed.
| Technical Data: ISG3430TLK-WS | ||||||
| Ident No | Dimensions | Clamping Range Carbide | Clamping Range HSS | Air Pressure | Power | Weight |
| 5102055 | Depth: 550mm (22") Width: 790mm (31") Height: 850mm (34") |
3-32 mm 1/8" - 1-1/4" |
6-32 mm 1/4" - 1-1/4" | N/A | 3x480V-15A | 45 kg 100 lbs |

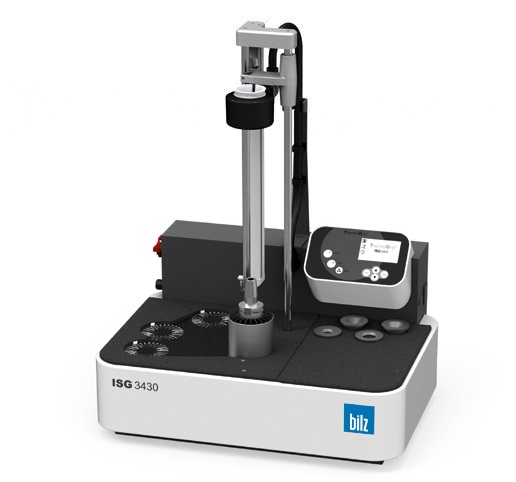

This processor controlled ISG3430TLK4A unit is simple to use. All that needs to be done is to select the diameter of the cutting tool. After the Start key is pressed, the induction coil is moved down onto the tool holder automatically, and the coil heats the tool holder sufficiently. When heat cycle is completed, the coil moves upward away from tool automatically, and the cooling fan blows air through the heat sink. Place the top heat sink onto the tool holder and allow the tool to cool in minutes. The ISG3430TLK4A is a universal shrinking unit for the professional use of shrinking technology. With its unique coil changing system, the power transfer adjusted to different clamping chucks is guaranteed within a short period of time. Compared to other systems, this makes it possible to clamp the smallest diameter tools. This means that the constant preparation of a high number of tools can be guaranteed.
| Technical Data: ISG3430TLK-WS | ||||||
| Ident No | Dimensions | Clamping Range Carbide | Clamping Range HSS | Air Pressure | Power | Weight |
| 5099185 | Depth: 600mm (24") Width: 830mm (33") Height: 1020mm (40") |
3-32 mm | 6-32 mm | 4 bar 60 PSI |
3x480V-15A | 66 kg 145 lbs |

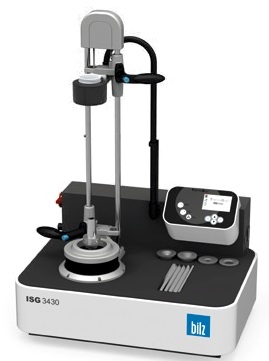

This processor controlled ISG3430TWK unit is simple to use. All that needs to be done is to select the tool diameter range. After the induction coil is positioned around the tool holder, push the start button and the coil heats the tool holder sufficiently. When heat cycle is completed, move the coil upward away from tool. Raise the cooling sleeve and press the cooling button, allowing the tool to cool in seconds. ISG3430TWK: It is universal shrinking unit for the professional use of shrinking technology. With its unique coil changing system, the power transfer adjusted to different clamping chucks is guaranteed within a short period of time. Compared to other systems, this makes it possible to clamp the smallest diameter tools. This allows for a constant preparation of a high number of tools. Guaranteed
| Technical Data: ISG3430TWK-WS | ||||||
| Ident No | Dimensions | Clamping Range Carbide | Clamping Range HSS | Air Pressure | Power | Weight |
| 5122364 | Depth: 600 (24") Width: 830 (33") Height: 965 (38") |
3-32 mm | 6-32 mm | N/A | 3x480V-15A | 52 kg 115 lbs |
This controlled ISG3410WK-WS unit is simple to use. All that needs to be done is to select the tool diameter range. Fully automated system allows you to load tool and operate the system almost hands-free. Load diameter of tool, select style of shrink chuck, press the start button and 45 seconds later you tool is installed and cooled to room temperature. ISG3410WK-WS: It is universal shrinking unit for the professional use of shrinking technology. With its unique coil changing system, the power transfer adjusted to different clamping chucks is guaranteed within a short period of time. Compared to other systems, this makes it possible to clamp the smallest diameter tools. This means that the constant preparation of a high number of tools can be guaranteed.
| Technical Data: ISG3410WK-WS | ||||||
| Ident No | Dimensions | Clamping Range Carbide & HSS | Air Pressure | Power | Weight | |
| 5072348 | Depth: 600mm (24") Width: 830mm (33") Height: 1950mm (77") |
3-32 mm Carbide 6-32 mm HSS 32-50mm carbide & HSS (with optional coil) |
4 bar 60 PSI |
3x480V-15A | 145 kg 320 lbs |
|

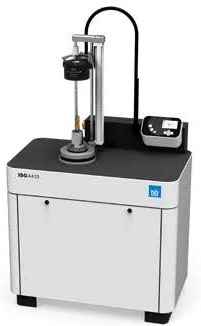

This controlled ISG4410WK2-HL unit is made for the extreme load. Even the largest of shrink fit tool holders can be heated and cooled safely. The Bilz direct liquid cooling system takes place inside the shroud, the heavy tool holders stay stationary. An optional rotating coil tower gives free access from above, which makes it possible to lift the heaviest of tool holders in and out of the machine with a crane. Available with color screen or touch screen, this machine offers the same universal functionality as the rest of the line, with the additional size and weight capability. Several induction coils are available for the largest of range. With its unique coil changing system, the power transfer adjusted to different clamping chucks is guaranteed to be most efficient. Compared to other systems, this makes it possible to clamp the smallest to the largest diameter tools with ease. With this machine, the continuous preparation of a high number of tools can be guaranteed.
Heavy wall holders of all brands can be heated efficiently.| Technical Data: ISG3410WK-WS | ||||||
| Ident No | Dimensions | Clamping Range Carbide & HSS | Air Pressure | Power | Weight | |
| 5098012 | Depth: 700mm (28") Width: 1210mm (48") Height: 2130mm (84") |
3-32 mm Carbide 6-32 mm HSS 32-50mm carbide & HSS (with optional coils) |
4 bar 60 PSI |
3x480V-15A | 195 kg 430 lbs |
|
