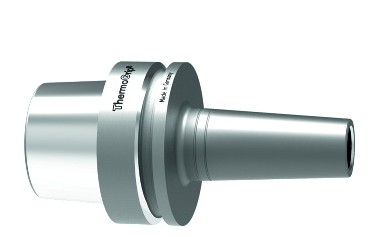

ThermoGrip® TSF Slim Chucks HSK-E32 (metric)

ThermoGrip® TSF Slim Chucks HSK-E32 (metric)
To add a part to your cart, click the Add to cart icon icon. To request information or a quote click View Cart.
Stock standard In Stock, Non-stock standard Not in stock, Non-stock special Not in stock

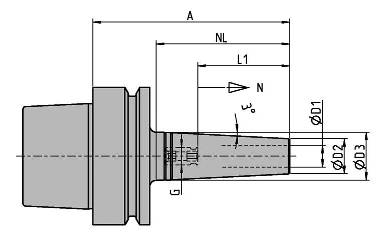

Description A D1 D2 D3 G L1 NL N HSS Ident No
TSF0300-40(A=64)/HSK-E32 64 3 9 13 M6 20 40 5 no 9078742
Qty Add
Add to CartStock standard
TSF0300-70(A=94)/HSK-E32 94 3 9 16 M6 20 70 5 no 9078743
Qty Add
Add to CartStock standard
TSF0400-40(A=64)/HSK-E32 64 4 10 14 M6 20 40 5 no 9078744
Qty Add
Add to CartStock standard
TSF0400-70(A=94)/HSK-E32 94 4 10 17 M6 20 70 5 no 9078745
Qty Add
Add to CartStock standard
TSF0600-50(A=74)/HSK-E32 74 6 12 17 M5 36 50 5 no 9078746
Qty Add
Add to CartStock standard
TSF0600-80(A=104)/HSK-E32 104 6 12 20 M5 36 80 5 no 9078747
Qty Add
Add to CartStock standard
TSF0800-50(A=74)/HSK-E32 74 8 12 17 M6 36 50 5 no 9078748
Qty Add
Add to CartStock standard
TSF0800-80(A=104)/HSK-E32 104 8 12 20 M6 36 80 5 no 9078749
Qty Add
Add to CartStock standard
TSF1000-55(A=78)/HSK-E32 78 10 16 21 M8x1 42 55 5 no 9078750
Qty Add
Add to CartStock standard
TSF1000-80(A=104)/HSK-E32 104 10 16 22 M8x1 42 80 5 no 9079751
Qty Add
Add to CartStock standard
