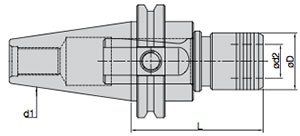

WF - CAT V-Flange

WF - CAT V-Flange. Note: Coolant Thru @ 50 BAR/725 PSI
To add a part to your cart, click the Add to cart icon icon. To request information or a quote click View Cart.
Stock standard In Stock, Non-stock standard Not in stock, Non-stock special Not in stock
Description d1 Version Series DIN taps ANSI taps Pipe taps L D d2 Ident No
WF1-IKP-M/CAT40 40 inch 1 M3-M12 #0-9/16" 1/8" 74 32 19 117011
Qty Add
Add to Cart
Stock standard
WF1-IKP-M/CAT50 50 inch 1 M3-M12 #0-9/16" 1/8" 74 32 19 117012
Qty Add
Add to Cart
Stock standard
WF2-IKP-M/CAT40 40 inch 2 M8-M20 1/4-7/8" 1/8-1/2" 89 50 31 117021
Qty Add
Add to Cart
Stock standard
WF2-IKP-M/CAT50 50 inch 2 M8-M20 1/4-7/8" 1/8-1/2" 89 50 31 117022
Qty Add
Add to Cart
Stock standard
WF3-IKP-M/CAT50 50 inch 3 M14-M33 13/16-1-3/8" 1/2-1" 122 71 48 117032
Qty Add
Add to Cart
Stock standard
