CNC Drill Chucks

CNC Drill Chuck - CAT40 & CAT50
To add a part to your cart, click the Add to cart icon icon. To request information or a quote click View Cart.
Stock standard In Stock, Non-stock standard Not in stock, Non-stock special Not in stock

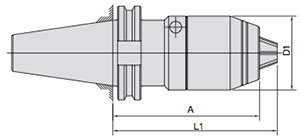

Description Taper Range Range (inch) D1 A L1 A (inch) L1 (inch) Weight (kg) Ident No
NCDC/1-16-3.90/CAT40 inch 1-16 0.04-0.62 1.97 99 111 3.90 4.37 - 9890003
Qty Add
Add to Cart
Stock standard
NCDC/1-16-3.31/CAT50 inch 1-16 0.04-0.62 1.97 84 96 3.31 3.78 - 9890004
Qty Add
Add to Cart
Stock standard
NCDC/1-16-3.86/HSK-A63 inch 1-16 0.04-0.62 1.97 98 110 3.86 4.33 - 9890005
Qty Add
Add to Cart
Stock standard
NCDC/1-16-3.86/HSK-F63 inch 1-16 0.04-0.62 1.97 98 110 3.86 4.33 - 9890006
Qty Add
Add to Cart
Stock standard
BT30-NPU8-70 metric 0.3-8 0.01-0.31 36.5 70 75.7 2.76 2.98 0.8 9890001
Qty Add
Add to Cart
Stock standard
BT30-NPU13-100 metric 1-13 0.04-0.51 50.4 100 110 3.94 4.33 1.8 9890002
Qty Add
Add to Cart
Stock standard
